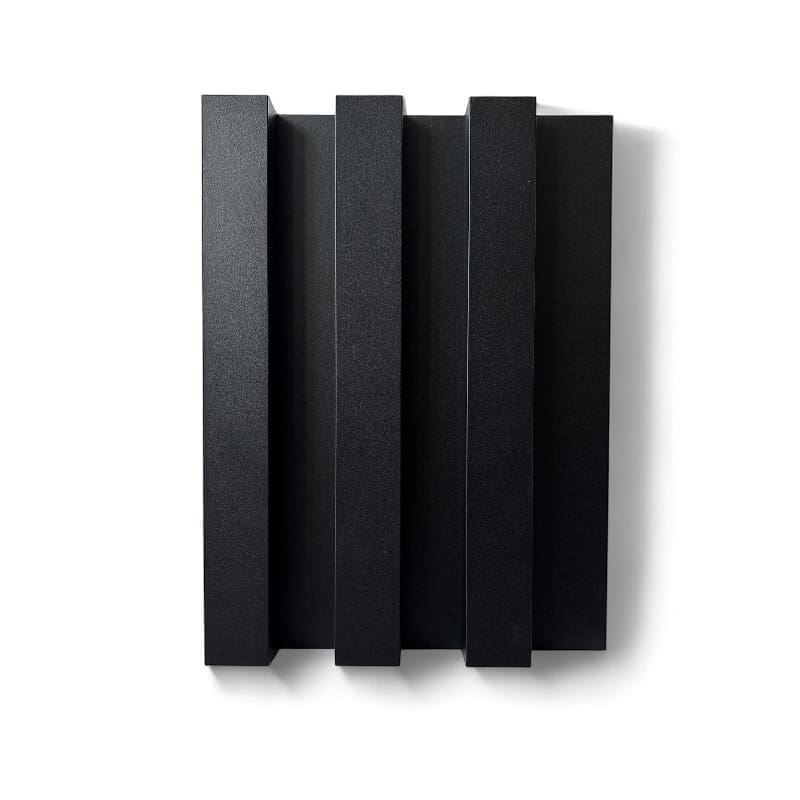

Aluline is the aluminium façade cladding from Corswarem: vertical ribs 35 mm wide and 25 mm deep on an extruded base plate with a click system. It gives your home a clean, modern rhythm that keeps looking good for years, with no painting and little maintenance. Here you configure your façade section by section and see straight away what it costs.
Why aluminium façade cladding?
- Durable: aluminium doesn't rust or rot and stays dimensionally stable, in sun and rain alike.
- Low maintenance: an occasional rinse is all it needs.
- Lightweight: it puts hardly any load on the façade and the substructure.
- In any RAL colour, in matt, fine texture or gloss, with no surcharge for the finish.
- Aluminium is fully recyclable.
A complete system, made to measure for your façade
You don't just get a set of profiles. The configurator works out the entire system: the base plates and clip-on profiles, an aluminium spacer substructure sized to your cavity, the L-profile at the bottom, the trims around windows and doors, and a corner piece for each external corner. The profiles are cut to size and powder-coated, and the cutting waste from the 6-metre lengths is already included in the price.
How to configure your façade
- Enter the build-up: the thickness of the insulation and of the cavity behind the cladding.
- Describe your façade section by section: width, height and the external corners. If the cladding turns a corner, add the next section.
- Add the windows and doors in each section as openings.
- Choose the colour and finish. The drawing, plan view and 3D view update with every step.
- Order straight away, or request a quote including a check of your measurements and a shop drawing.
Good to know
Aluline is intended for self-builders and contractors: installation is not included in the price. Feel free to send a façade plan or photos, and we'll check the substructure and the details with you. Prefer to talk first? Call us on +32 12 260 170 or visit our showroom.
| Profile | vertical ribs 35 mm wide and 25 mm deep, at 70 mm centres |
|---|---|
| Base plate | extruded aluminium, 210 mm cover width, with click system |
| Substructure | aluminium spacer tubes sized to the cavity, spaced no more than 1 m apart |
| Cavity | 20 – 200 mm |
| Finishing | L-profile at the bottom, corner piece for each external corner, 50 × 30 mm L-profile around each opening |
| Free side edge | transition profile and flat strip, so that the section ends with a rib |
| Colour | any RAL colour, matt, fine texture or gloss, from our own powder-coating line |
| Production | cut to size in our workshop in Tongeren-Borgloon |
| Installation | to install yourself, with a shop drawing in advance; installation by us on request |
| Category | Aluminium façade cladding |
Made to measure
- Delivery time: approx. 20 working days after you approve the shop drawing. A colour outside our standard range may extend the delivery time; we will let you know when you order.
- Before we start production, we check your measurements and choices. If anything does not look right, we will contact you.
- Made-to-measure products do not fit in a parcel: at checkout, choose home delivery (€60 in Limburg and the province of Liège, €69 in Antwerp, Brussels, Flemish and Walloon Brabant and Namur, €79 in East Flanders and €109 in West Flanders, Hainaut, Luxembourg and the Netherlands) or free collection in Tongeren-Borgloon. We will call you to arrange a delivery day.
- Anything made to your measurements or in your colour is not covered by the right of withdrawal. So measure carefully using the measuring guide; if in doubt, feel free to ask us for advice.
