A pleated fly screen door is the most elegant fly screen for a patio door or a large sliding door. The black pleated mesh opens and closes like a concertina and disappears, folded up, into a slim cassette beside the door. At the bottom there is a track just 3 mm high: you step over it without noticing, even with a pushchair.
Why choose a pleated fly screen door?
- Almost invisible: a 35 mm cassette, with the mesh folded away when you're not using it.
- Virtually threshold-free: a flat 3 mm bottom track, or an angled bottom track for a sloping threshold.

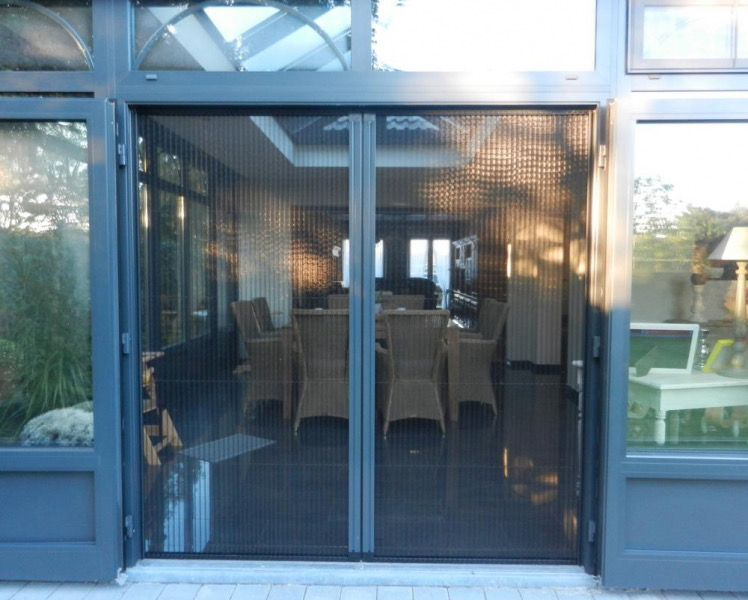

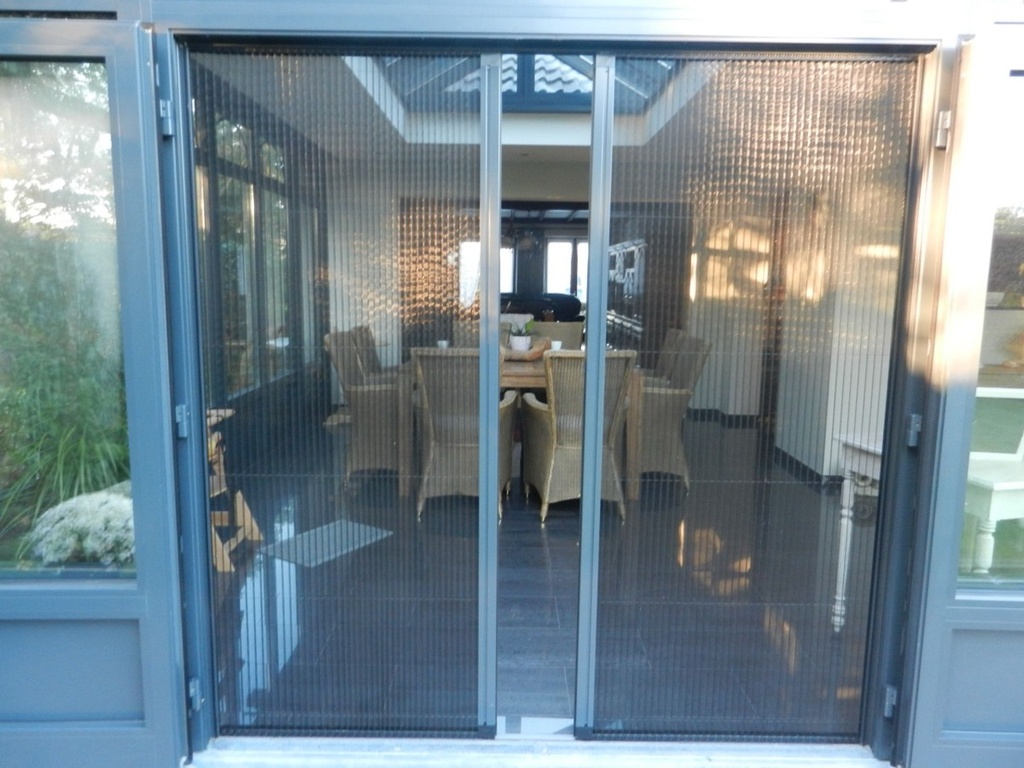

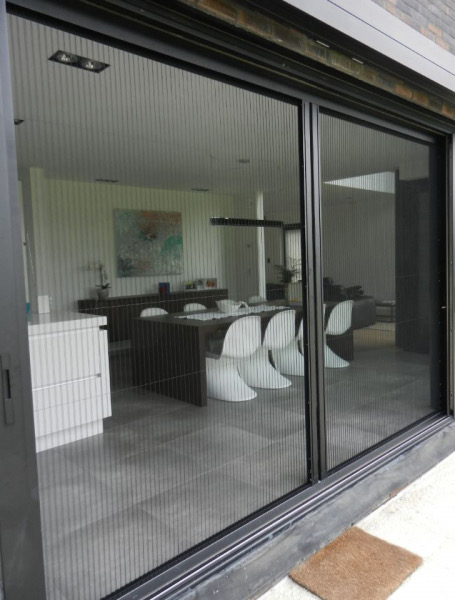

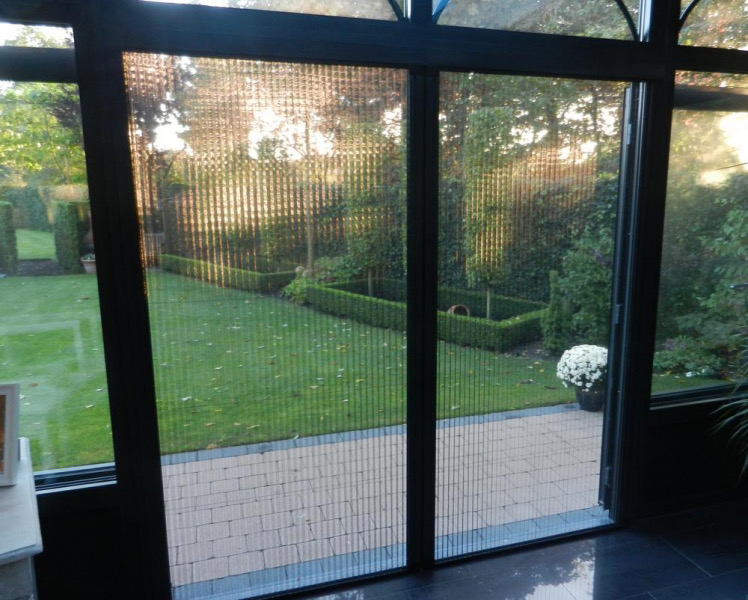

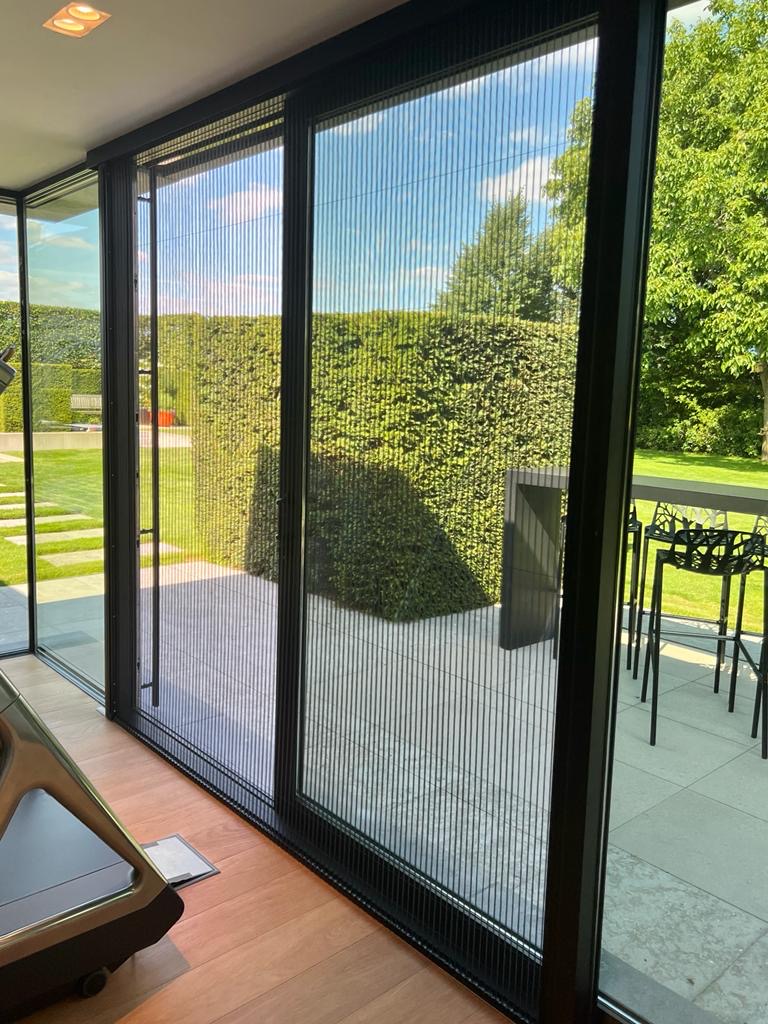

- For large openings too: a single pleated screen up to 2.9 m, or two pleated screens meeting in the middle up to 5.8 m.

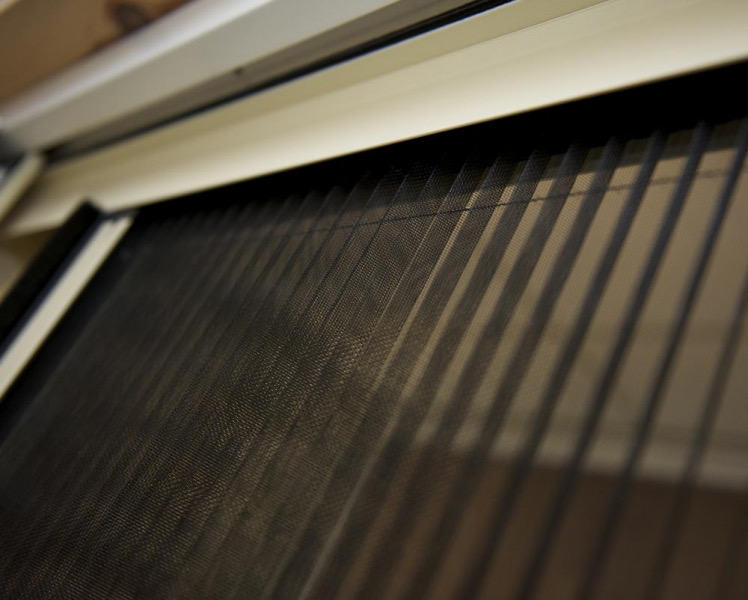

- Black mesh with horizontal tension cords, which is the easiest to see through; at the bottom it runs in a plastic chain.
- In the colour of your door and window frames.
Sizes and versions
A pleated fly screen door comes in fixed widths: 960, 1,300, 1,600, 1,900, 2,300, 2,600 and 2,900 mm. You enter the overall dimensions: the total width the pleated screen may take up, including the cassette and pull bar, and the height from the floor to the top of the top track, up to 3 m. We use the next fixed width up and cut the tracks to your size. You also choose the sliding direction: the side the mesh folds away to, as seen from outside.
Inside the reveal or face-fixed
As standard, the pleated screen is fitted inside the reveal: between the sides of the opening, on your door or window frame. For this you need a depth of at least 45 mm. If you want it face-fixed, in front of the opening on the façade or the frame, the cassette clicks onto a 33 mm mounting profile and a mohair brush seal on the inside of the pull bar closes the gap. A pleated screen with a surrounding aluminium frame, supplied fully assembled, is available up to 1,600 mm wide.
Options
- Magnetic catch: the pull bar closes magnetically; on a double pleated screen, the two pull bars close against each other.

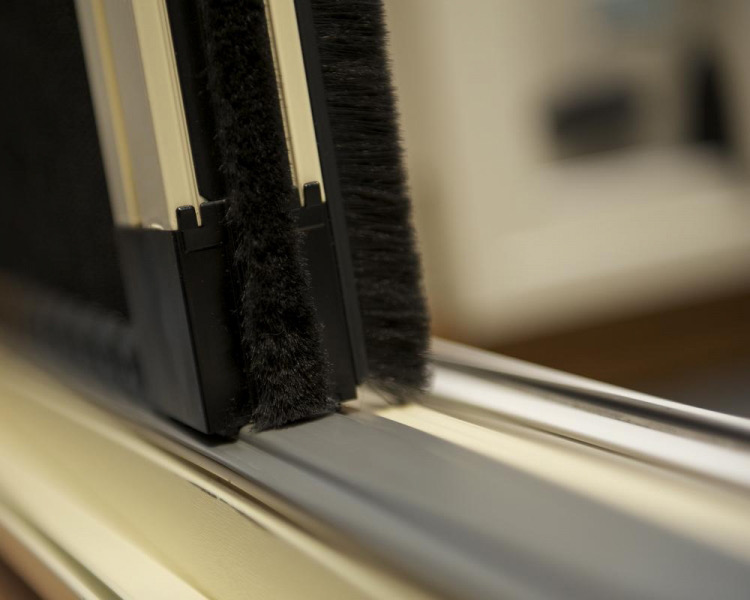

- Mohair brush seal on the inside of the pull bar: from 5 to 35 mm, at no extra cost.
- Angled bottom track: a 7° profile that compensates for a sloping threshold.
- Coloured bottom track: in a textured powder coating instead of anodised aluminium.
How to measure
Measure the width at three heights and the height in three places, and each time take the smallest measurement. Check the floor too: the bottom track is bonded flat to the floor. If the threshold slopes, choose the angled bottom track. The measuring guide shows you how, with drawings.
How to install your pleated fly screen door
To see how to install the pleated fly screen door, watch this installation video: installation videos on hrvliegenramen.be.
| Widths | 960, 1,300, 1,600, 1,900, 2,300, 2,600 or 2,900 mm; tracks cut to your size |
|---|---|
| Height | 1,800 – 3,000 mm, overall size including the tracks |
| Version | single, or double up to 5,800 mm (two pleated screens, one top track) |
| Top track | U-profile 45 × 60 mm |
| Bottom track | flat, 3 mm high and 32 mm wide, anodised or coloured |
| Cassette | 35 × 34 mm |
| Pull bar | 66 × 37 mm, with a 20 mm mohair brush seal on the end face |
| Mesh | black pleated mesh with horizontal tension cords, held in a plastic chain at the bottom |
| Mounting | inside the reveal (minimum depth 45 mm), face-fixed with 33 mm mounting profile, or with surrounding frame up to 1,600 mm |
| Options | magnetic catch, mohair brush seal on the inside of the pull bar 5 – 35 mm, 7° angled bottom track |
| Material | powder-coated aluminium |
| Colour | six standard colours at no extra cost; any other RAL colour or finish +15% |
| Reference | VWER003 |
| Category | Pleated fly screen doors |
Made to measure
- Delivery time: approx. 20 working days after your order is confirmed. A colour outside our standard range may extend the delivery time; we will let you know when you order.
- Before we start production, we check your measurements and choices. If anything does not look right, we will contact you.
- Made-to-measure products do not fit in a parcel: at checkout, choose home delivery (€60 in Limburg and the province of Liège, €69 in Antwerp, Brussels, Flemish and Walloon Brabant and Namur, €79 in East Flanders and €109 in West Flanders, Hainaut, Luxembourg and the Netherlands) or free collection in Tongeren-Borgloon. We will call you to arrange a delivery day.
- Anything made to your measurements or in your colour is not covered by the right of withdrawal. So measure carefully using the measuring guide; if in doubt, feel free to ask us for advice.
